AA®720 Series Door Systems

The AA®720 Doors have been developed to meet the latest European requirements for thermal performance and have been future proofed against expected changes in thermal regulations up to 2019.

Discover more with our featured video content:
Document L (Q&A)

  • Available in two thermal options, standard and HI, to meet your specific thermal needs
  • A very versatile door with vent heights up to 3m and a vent weight up to 300kg and multiple hardware options
  • A robust medium to heavy duty door, with a number of configurations as standard and compatibility with Kawneer curtainwall and window platforms
  • Independently tested to PAS 24 Standard – Enhanced security performance of single and double leaf external doors

Click here for further information on a range of suited handles available for our AA®720 Doors
The Kawneer AA®720 Door has been developed to meet the latest European requirements for thermal performance.

To enable complete flexibility of design, performance and cost, the AA®720 Door is available in two levels of thermal performance – the AA®720 and the AA®720HI.

The 72mm profiles incorporate the very latest thermal technology including; extruded polyamide thermal breaks, insulated centre seals and foam isolators.

As well as being fully integrated, the AA®720 Door can suite with Kawneer’s curtain walling and framing products and is suitable for installation in low or high rise buildings for commercial and domestic new build or refurbishment projects.

A range of suited handles are available for our AA®720 Doors, see our Suited Handle Range Brochure.

Crimped or pinned with mechanical corner cleats.  Corner braces are also used.
Weathering is achieved by the use of single and dual durometer, EPDM gaskets.
Pressure equalised system.


As well as flexibility in performance, the AA®720 offers versatility in design with the range encompassing a wide variety of integrated window and door configurations. For information on Kawneer’s AA®720 Series Window Systems please refer to our Window Systems Brochure.


Variants to the AA®720 Door range are:

  • Softline/Design variants with rounded contours
  • Open in and open out variants
  • Choice of thresholds
  • Extensive panic hardware offer
  • Large leaf size and weight capabilities
  • Finger guard option

The AA®720 Door also offers extensive hardware configurations, including new concealed hinges and barrel hinges as well as extensive handle and locking options, to suite with other products in the Kawneer range.


Glazing and panels up to 56mm thickness can be accommodated enabling the use of triple glazing for when there is a requirement for the very highest thermal and acoustic performance.

The AA®720 Door has been independently tested to PAS 24 for the enhanced security performance of single and double leaf external doors.
* Does not refer to standard hardware, security hardware required.

Project Assistance

For advice and support and to ensure you find the best solution for your individual project needs, please contact our Architectural Services Team.

Finishes Brochure
367 KB
Education Brochure
7 MB
Suited Handle Range Brochure
3 MB
Door System Brochure
4 MB

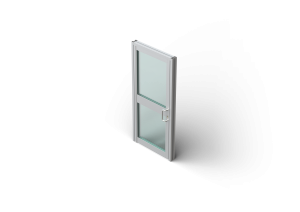

Kawneer’s BIM Models are downloadable in the Revit format and also available on request as IFC files.

Our BIM Models provide users with 3D images of the products as well as the critical COBIE data to provide guidance through the whole design and construction process.

Download All
AA720 Doors
