Curtain Wall

AA®100 Structurally Silicone Glazed (SSG)

The AA®100 SSG system allows glazing of the curtain walling to be achieved without the use of conventional pressure plate and face caps. The system is finished with a flush silicone weatherproof seal.

Discover more with our featured video content:
Document L (Q&A)
Anna Freud National Centre featuring AA®100 SSG Parallel Opening Vents

  • Tested and certified in accordance with CWCT Sequence B
  • Maximised structural capability and design with a range of mullions and transoms
  • Silicone sealed glass to glass joint

Introduction

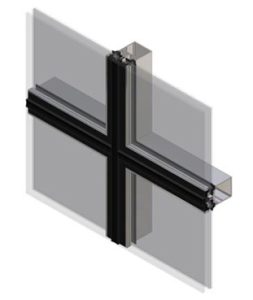

The AA®100 SSG is a variant of our flagship AA®100 curtain wall system, which allows glazing of the curtain walling to be achieved without the use of conventional pressure plate and face caps, giving an aesthetically pleasing appearance with flush glazing to the exterior.

The grid construction replicates the AA®100 mullion drained system, so carries the same ease of installation. The flush external appearance is provided by specially manufactured insulated glazing units constructed with the use of structural silicone sealant and contain an integrated channel profile around the perimeter of the glazing cavity. Toggle clips positioned on the mullions and transoms locate into the channel profile to provide the mechanical retention to secure the pane to the curtain wall.

The glazing unit is deadload supported by the transom using a combination of setting blocks and glass supports, additionally the final aesthetics of the façade is enhanced by use of a flush seal between the glass units by means of a UV resistant weatherproofing silicone sealant.

Product Features and Benefits

  • Dry jointing method using specially designed EPDM moulding
  • Mullion drainage
  • Glazing from 30mm to 58mm for increased design flexibility
  • Maximum glass weight up to 700kg
  • Thermal performance can meet current Building Regulations
  • Tested and certified in accordance with CWCT Sequence B
  • Maximised structural capability and design with a range of mullions and transoms
  • Integration with both AA®100 and AA®110 curtain wall systems
  • Can accommodate triple glazing retained using a toggle system
  • Silicone sealed glass to glass joint
  • Maximum screen height of 16m

Contact our Technical Services Department for further information.
