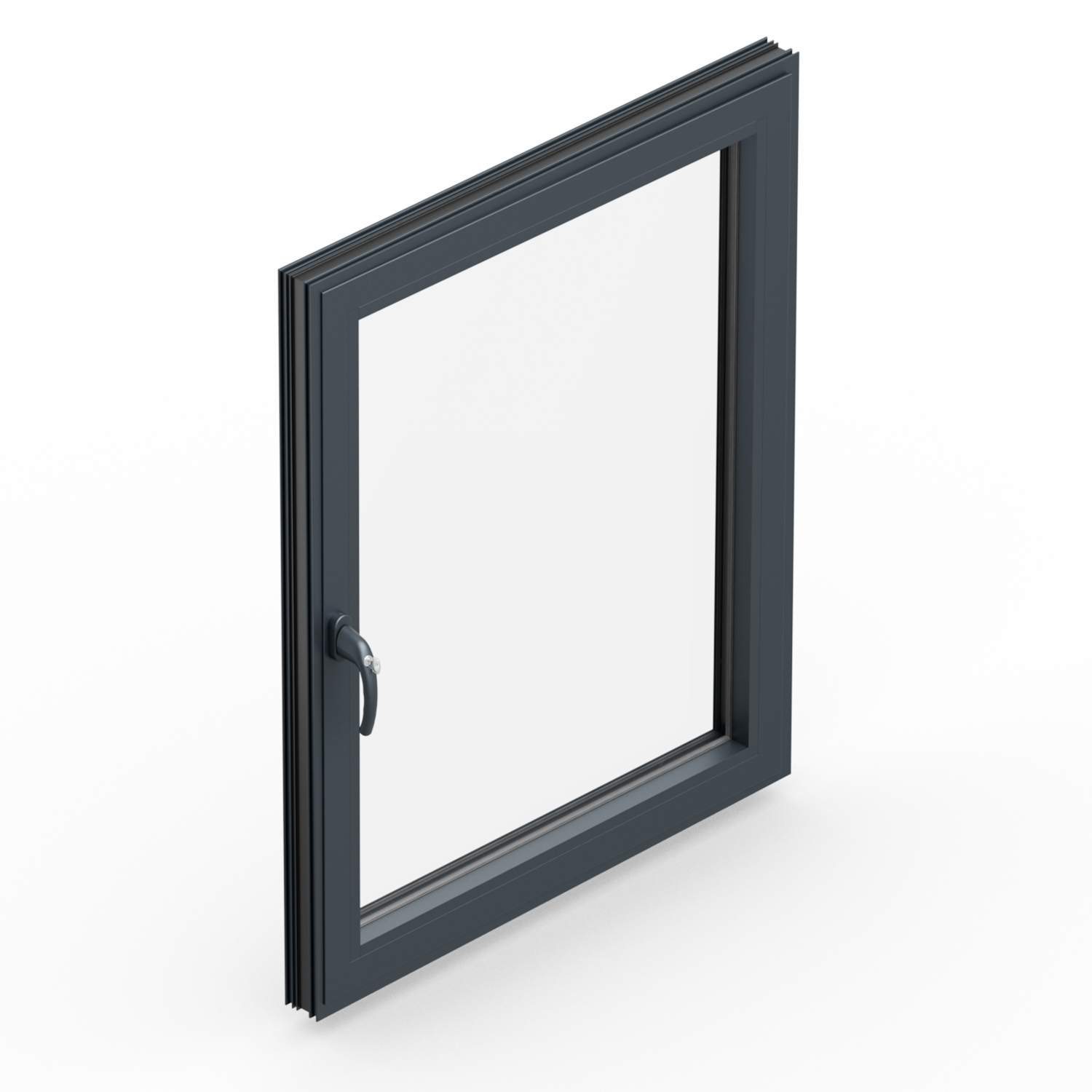

AA®720 Accessibility Window

The AA^®720 Two-Stage Open-In Accessibility Window has been specifically designed for high rise Residential applications, but is suitable for multiple markets. It has a Two-Stage Opening Vent with an operation handle positioned at the bottom of the vent for easy access and control which also meets the Lifetime Homes standard.

Complies with Lifestyle home standards ensuring that the accommodation is adaptable throughout the lifetime of the building
Handle operates from the bottom of the window for easy access and control
Suites with the AA^®720 Series, AA^®100/AA^®110 Curtain Walling, 451PT Framing and Door Systems

Themal

The AA®720 Two-Stage Open-In Accessibility Window meets exacting thermal performance criteria.

Uf-Value range 1.4 – 2.0 W/m²K

Weathering

Optimal comfort in all weather conditions.

100mm opening position assists climate control
Windload Class AE2400
Air Permeability Class 4
Watertightness Class 7A

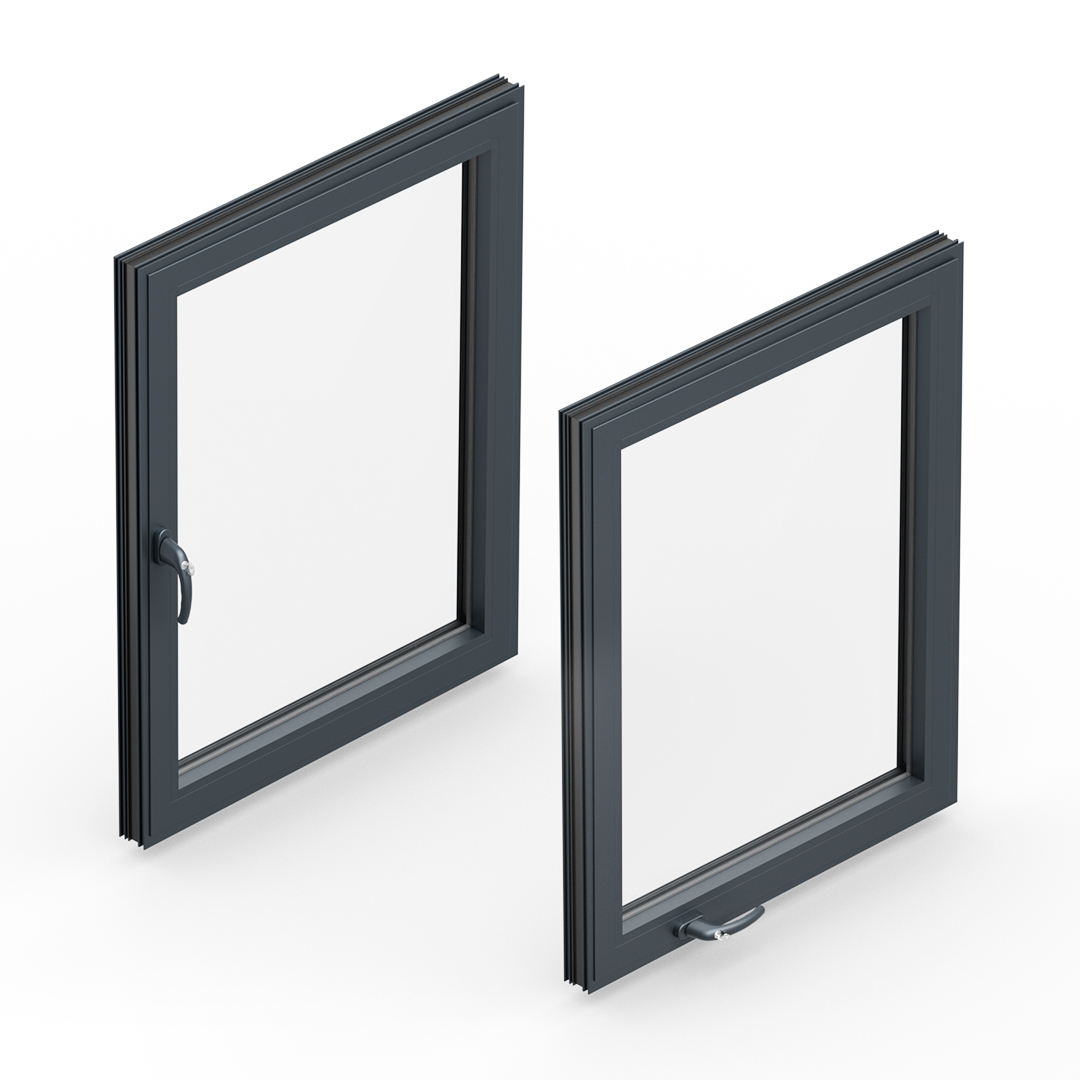

Enhanced Security

Independently tested to PAS 24:2016.

Restrictor mechanism automatically re-engages the window when closed
Open-in restriction of 100mm for safety, compliant with HTM 55/BS 8213

Size and Weight Capability

Range of size/weight combinations to suit a wide application spectrum.

Maximum size 2500mm
Fixed Light 300KG
Side Hung 130KG – 200KG
Two-stage opening 80KG
Infill Width 60mm

Two-Stage Opening Vent

Designed for high rise residential applications, but suitable for multiple markets.

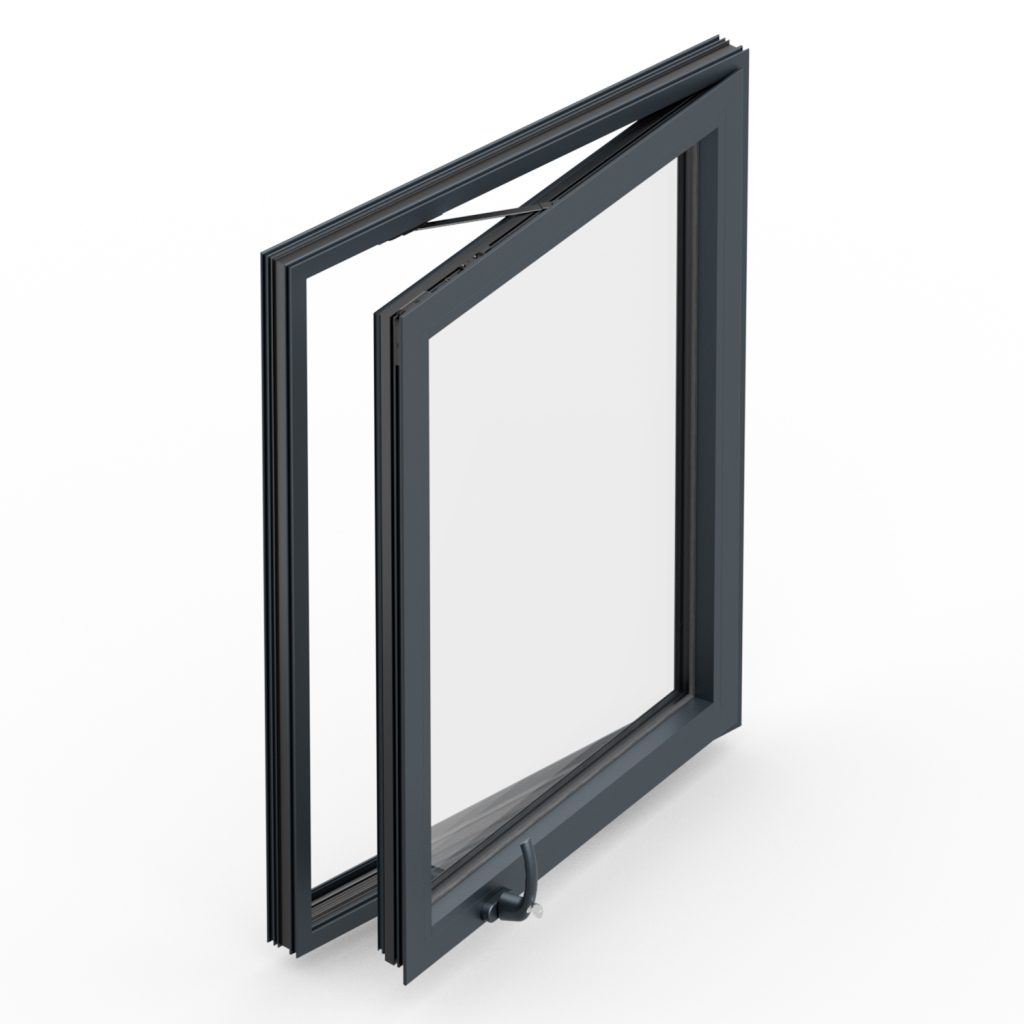

Stage 1 – window opens in to 100mm – natural ventilation and Document F compliance

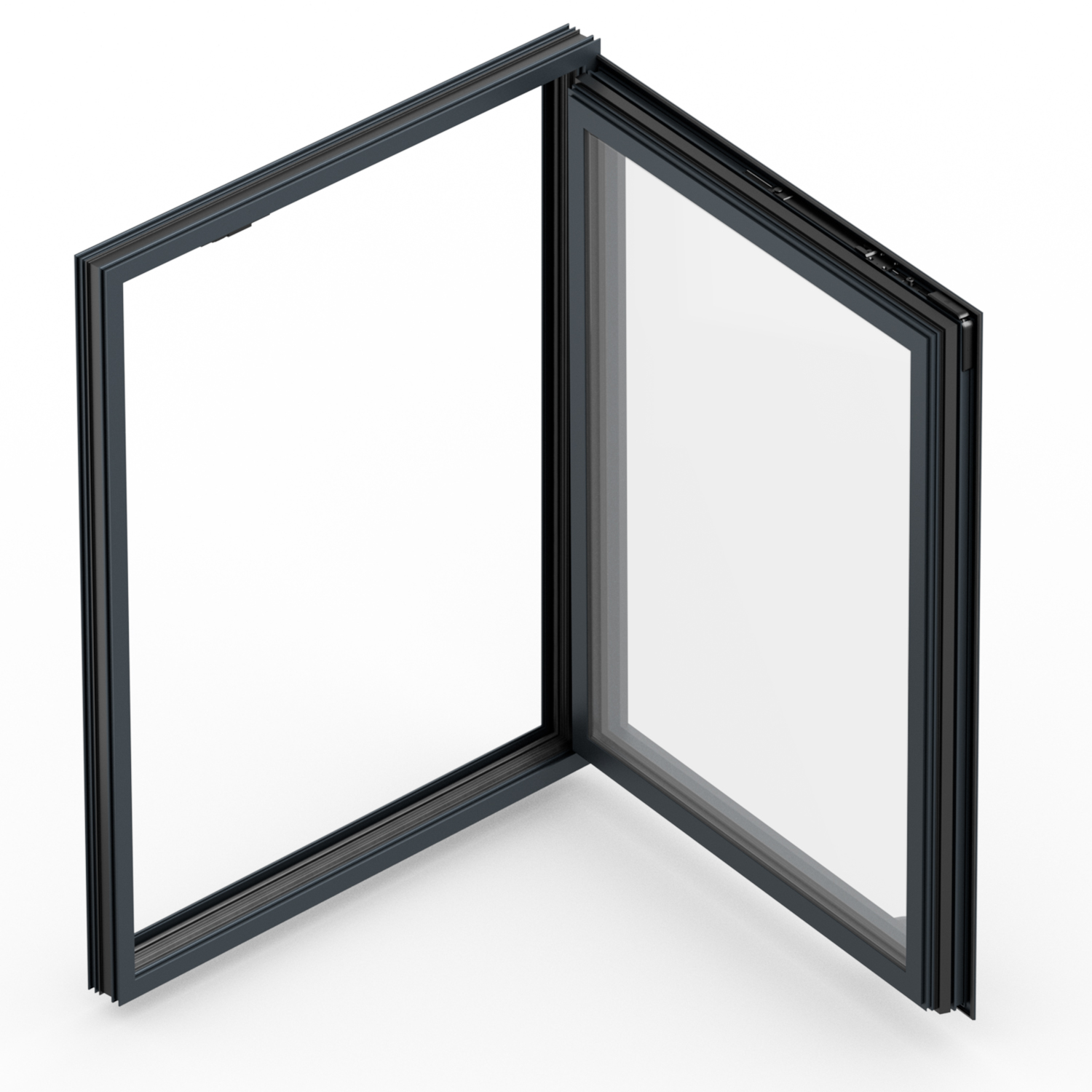

Stage 2 – window fully opens in with a key – thorough cleaning and purge ventilation

Complies with Lifestyle Home Standards

Adaptable accommodation for the lifetime of a building.

No need for refurbishment
Easy adaptations for changing needs

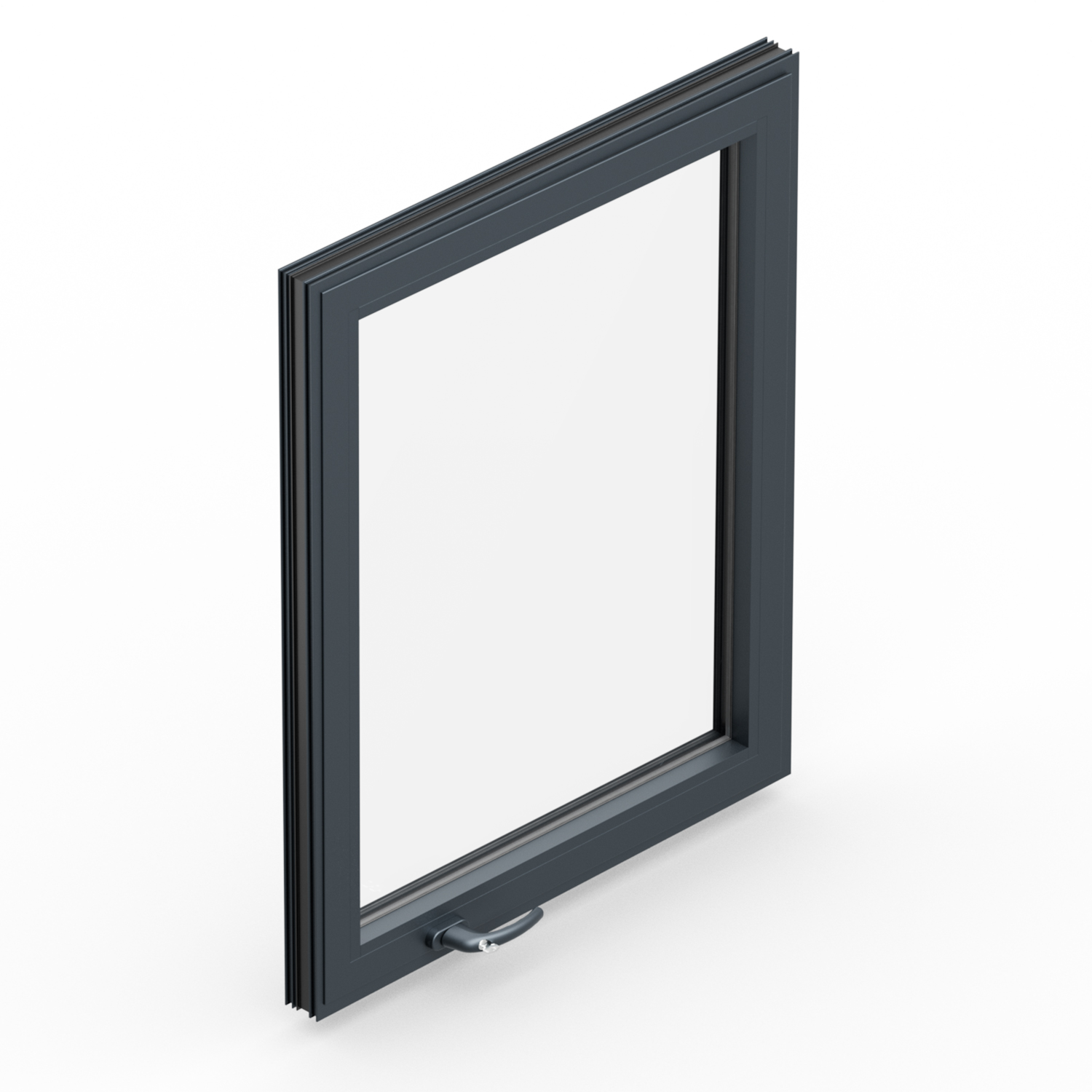

Handle operates from the bottom of the vent – easy access/control
Greater independence for the disabled

Option of Trickle Ventilation – can help meet the requirements of Document F
Conforms to the BS 6375 Part 1 and BS 6375 Part 2 standards

Winkhaus aluPilot

AA®720 open-in windows by Kawneer are now available with Winkhaus aluPilot Topstar hardware. Offering highly efficient installation, Topstar reduces production costs significantly. Punching and cutting connecting rods to length are upstream processes that are avoided via inserting components into the sash frame fitting groove.

AA®720 and aluPilot Topstar makes a formidable combination, enabling you to scale project needs with ease. An ideal fusion.

Turn, Turn-Tilt, Tilt-Before-Turn, and French Casement configurations are supported
Fabrication times can be 30% faster
Less componentry
Reduced tooling requirements
Eliminate punching and cutting
180KG weight concealed hinge feature
BM Trada Q Mark Compliant
PAS24
RC2 & RC3

Discover more with our featured video content:
Document L (Q&A)

Project Assistance
For advice and support and to ensure you find the best solution for your individual project needs, please contact our Architectural Services Team.

Window Systems Brochure

19 MB

[Download]

For all technical documents, visit Kawneer Online

PERFORMANCE

U value

1,4 - 2,0 W/m²K

Windload

Class AE2400

Air Permeability

Class 4

Watertightness

Class 7A

Glazing weight

300kg

Security

PAS 24

Acoustics

C;Ctr = 47 (-1, -3) dB

Certification

Passive House

KEY FEATURES

Maximum size

2500mm

Frame width

24mm - 64mm

System depth

72mm

Minimum sightline

23mm

Glazing thickness

22mm - 60mm

Glazing type

Double, Triple

Drainage and ventilation

Multi-point locking

Restrictor

100mm

Open options

Open out, open in

Finishes

130+

ARRANGEMENTS & WEIGHT LIMITATIONS

Top hung

Side hung

(130kg - 200kg)

2 stage opening

(80kg)

Bottom hung

TBT

Turn-Tilt

French casement

Parallel opening

Fixed Light

(300kg)

Horizontal pivot

Vertical pivot
