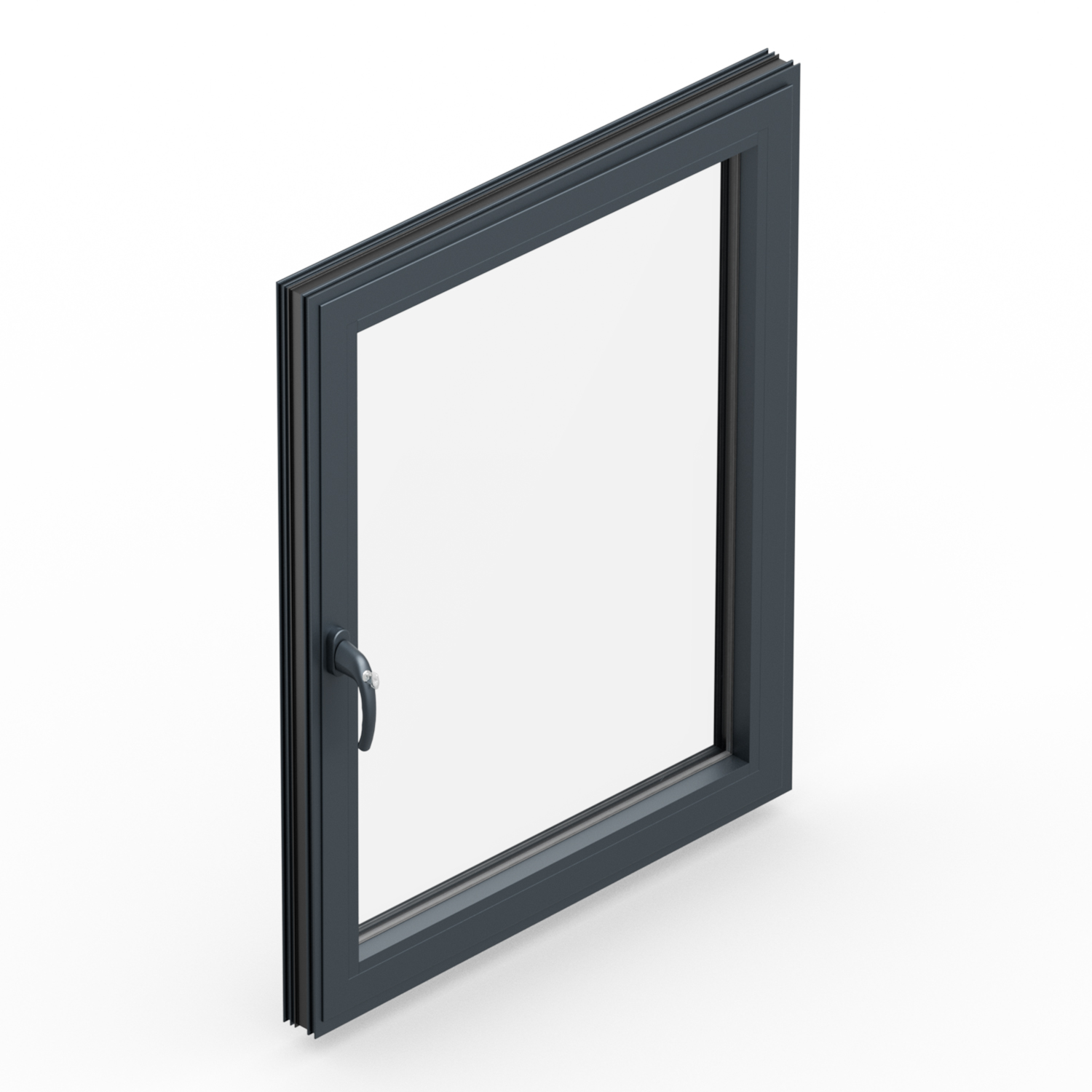

AA®720 Tilturn Window

The AA®720 Tilturn Window is designed to offer maximum weather and thermal performance at a competitive price range, meeting the most demanding specification performance on any project.

Discover more with our featured video content:
Document L (Q&A)

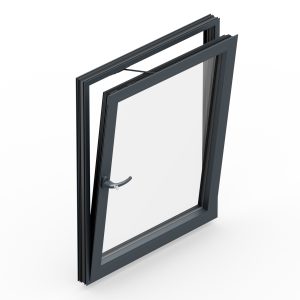

  • Tilt before turn operation. Tilt for ventilation and turn for cleaning. The full opening in the ‘turn’ position offers an escape route in an emergency (subject to size)
  • Noise protection Rw=39-47dB

Introduction
Click here for further information on the AA®720 Inward Opening Window Systems

Click here for further information on a range of suited handles available for our AA®720 Open In Tilturn, Turn Before Tilt, Turn Only, Bottom Hung and French Casement Windows

Click here for further information on our Two-Stage Open-In Accessibility Vent option

The AA®720 Tilturn Window is part of the AA®720 range of Window and Doors, designed to offer maximum weather and thermal performance at a competitive price range. Excellent thermal performance (AA®720 HI Reflex) has been met using Reflex technology with foam meeting the most demanding specification performance on any project.

Product Features and Benefits

  • BRE Green Guide ‘A’ Rated Frame** for projects that require sustainable and environmental advantages

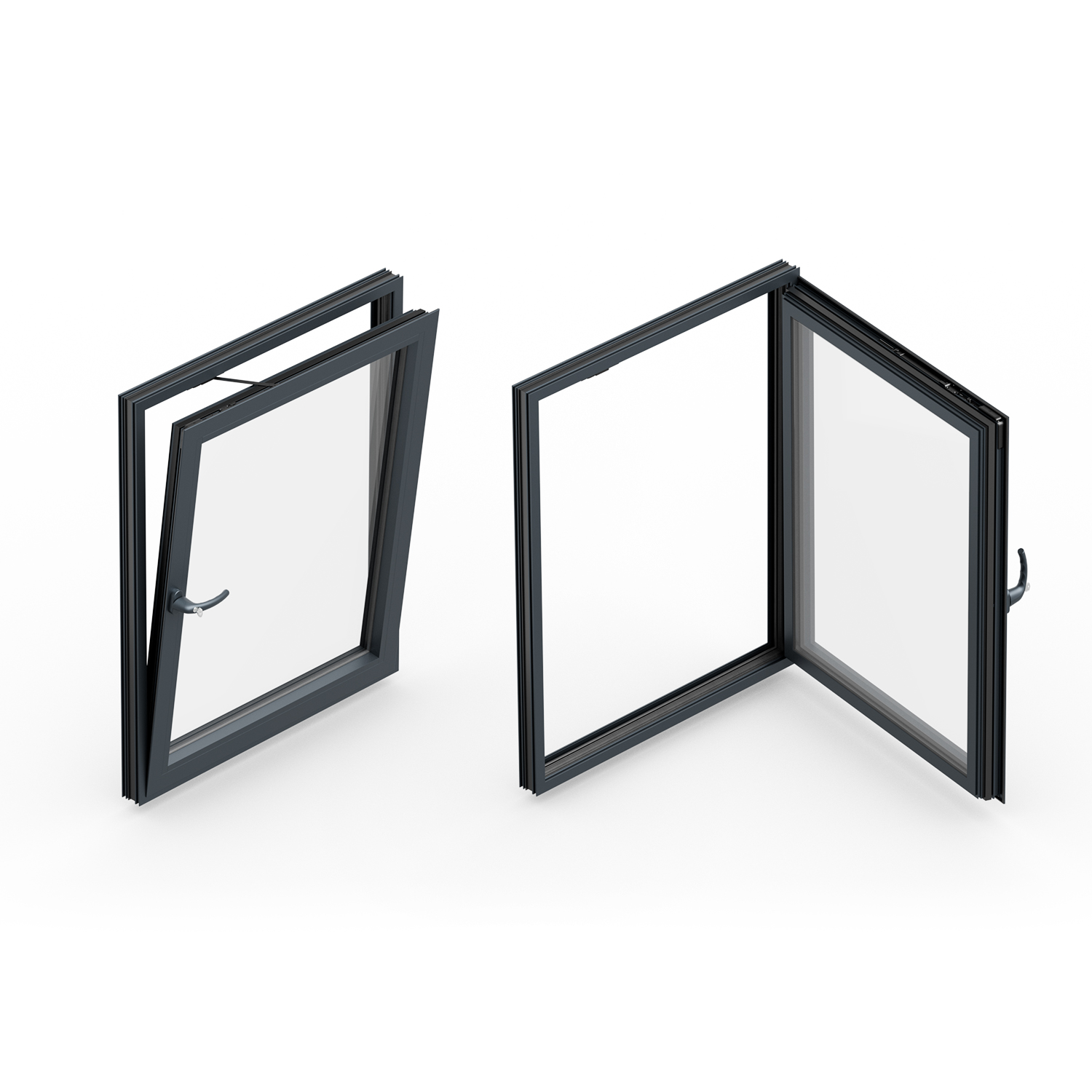

  • Tilt before turn operation. Tilt for ventilation and turn for cleaning. The full opening in the ‘turn’ position offers an escape route in an emergency (subject to size)
  • Standard bead, Box bead and Softline bead (Softline beads are mitred and secured with retaining clips)
  • Excellent thermal performance Uf from 1.0W/m²K (AA®720 HI Reflex)
  • Noise protection Rw=39-47dB
  • Trickle ventilation option available to help meet the requirements of Document F
  • Multi-point locking for added security and added safety in operation

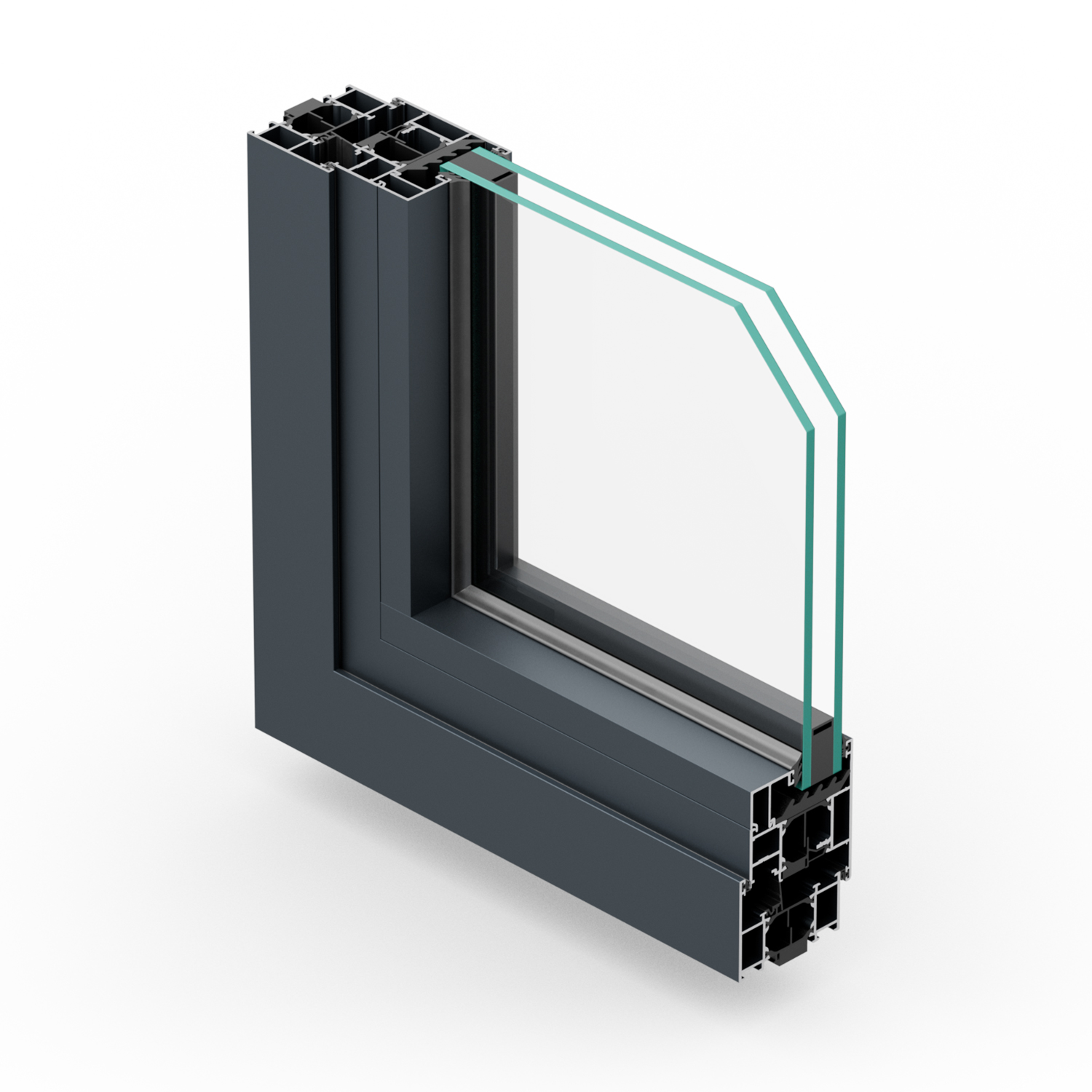

  • Accommodates glazing up to 56mm including triple glazing
  • Suites with AA®720 series, Juliet Balcony, LouvreShield, AA®100/AA®110 Curtain Walling, 451PT Framing and Door Systems
  • Two-Stage Open-In Accessibility Vent option, see our Window Systems Brochure
  • Suited Handle Options available, see our Suited Handle Range Brochure

** Corresponds to the BRE Global Green Guide online generic specification for windows and achieves a summary rating of A for non-domestic schemes.
www.thegreenguide.org.uk
Element Number 1231500007

Vent Size Limitations

All dimensions stated are in millimetres.
All dimensions stated are vent sizes.

Dimensions stated are General System Limitations.
Vent profile and hardware options are chosen depending upon size and glass weight.

  • Maximum weight 300kg
  • Vent 1600mm x 2100mm
  • Leaf 1100mm x 3000mm

Security*

The AA®720 Tilturn Window has been independently tested to PAS 24:2016.
* Does not refer to standard hardware, security hardware required.

Project Assistance

For advice and support and to ensure you find the best solution for your individual project needs, please contact our Architectural Services Team.

Window Systems Brochure
12 MB
Suited Handle Range Brochure
3 MB
For all technical documents, visit Kawneer Online
PERFORMANCE
U value
1,4 - 2,0 W/m²K
Windload
Class AE2400
Air Permeability
Class 4
Watertightness
Class 7A
Glazing weight
300KG
Security
PAS 24
Acoustics
C;Ctr = 47 (-1, -3) dB
Certification
Passive House
KEY FEATURES
Maximum size
2500mm
Frame width
24mm - 64mm
System depth
72mm
Minimum sightline
23mm
Glazing thickness
22mm - 60mm
Glazing type
Double, Triple
Drainage and ventilation
Multi-point locking
Restrictor
100mm
Open options
Open out, open in
Finishes
130+
ARRANGEMENTS & WEIGHT LIMITATIONS
Top hung
Side hung
(130kg - 200kg)
2 stage opening
Bottom hung
(50kg)
TBT
(130kg - 200kg)
Turn-Tilt
(130kg - 200kg)
French casement
(130kg)
Parallel opening
Fixed Light
(300kg)

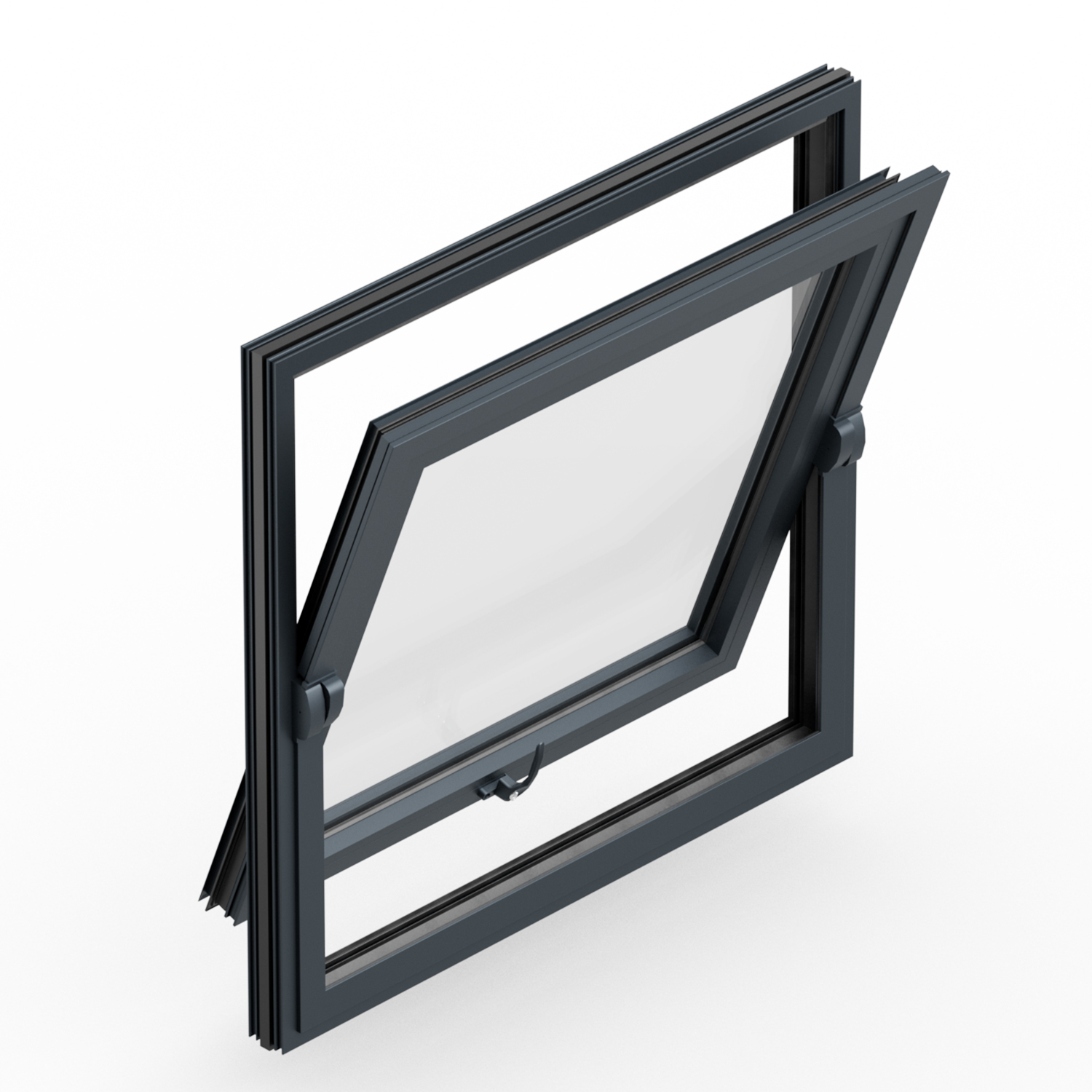

Horizontal pivot
Vertical pivot
