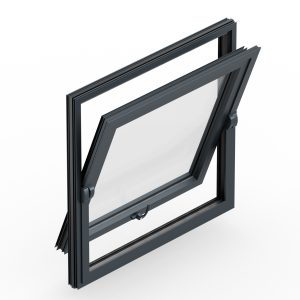

AA®720 Pivot Window

The AA^®720 Pivot Window is available for both horizontal and vertical pivot applications as well as vertical offset pivot, which makes it the ideal choice where natural ventilation is required.

Horizontal and vertical pivot options available resulting in continuous air flow to aid compliance with Document F
An integral automatic restrictor for restricted and non restricted pivots:
- Manual Locking/Unlocking with special Allen Key
- Automatic Re-engagement
- Manual Disengagement
Suites with AA^®720 series, AA^®100/AA^®110 Curtain Walling, 451PT Framing and Door Systems

Thermal

The AA®720 Pivot Window meets exacting thermal performance criteria.

Uf-Value range 1.4 – 2.0 W/m²K
Reflex technology with foam rod

Weathering

Purpose-built for exceptional weather performance

Windload Class AE2400
Air Permeability Class 4
Watertightness Class 7A

Enhanced Security

Offers the reassurance of independent testing to PAS 24:2016.

Multi-point locking – added security and safety in operation
Integral automatic restrictor for restricted pivots, where needed

Size and Weight Capability

Glazing up to 56mm with a triple glazing option.

Maximum size 1900mm
Fixed Light 300KG
Horizontal Pivot 150KG
Vertical Pivot 110KG
Infill Width 60mm

The Ideal Natural Ventilation Choice

For both horizontal and vertical pivot applications

Vertical offset pivot option
Continuous airflow and trickle ventilation options for Document F
Exclusive pivot housing to suit the extrusion profile, enhancing aesthetics/performance

Comprehensive Feature Package

Adaptable accommodation for the lifetime of a building.

Standard, Box and Softline beads
Standard and coloured anodised finishes
BRE Green Guide ‘A’ Rated Frame for sustainability

Vent Size Limitations

All dimensions stated are in millimetres
All dimensions stated are vent sizes
Dimensions stated are General System Limitations
Vent profile and hardware options are chosen depending upon size and glass weight

Horizontal Pivot

Maximum weight 150kg
Width up to 1900mm
Height up to 1900mm

Vertical Pivot – Central

Maximum weight 110kg
Width up to 1900mm
Height up to 1900mm

Vertical Pivot – Offset

Maximum weight 110kg
Minimum Dimensions Pivot Centre 350mm Wide (Open In Portion) x 500mm High
Maximum Dimensions Pivot Centre **950mm Wide (Open Out Portion) x 1900mm High

**Maximum Size Pivot Centre 950mm wide applies to Heavy Duty Profile 3001 877.
For further information on vent profile options please refer to Section B of the AA^®720 Product Manual.

Click here for further information on the AA^®720 Outward Opening Window Systems

Discover more with our featured video content:
Document L (Q&A)

Project Assistance
For advice and support and to ensure you find the best solution for your individual project needs, please contact our Architectural Services Team.

Window Systems Brochure

19 MB

[Download]

For all technical documents, visit Kawneer Online

PERFORMANCE

U value

1,4 - 2,0 W/m²K

Windload

Class AE2400

Air Permeability

Class 4

Watertightness

Class 7A

Glazing weight

300kg

Security

PAS 24

Acoustics

C;Ctr = 39 (-2, -5) dB

Certification

Passive House

KEY FEATURES

Maximum size

1900mm

Frame width

24mm-64mm

System depth

72mm

Minimum sightline

23mm

Glazing thickness

22mm - 60mm

Glazing type

Double, Triple

Drainage and ventilation

Multi-point locking

Restrictor

100mm

Open options

Open out, open in

Finishes

130+

ARRANGEMENTS & WEIGHT LIMITATIONS

Top hung

Side hung

2 stage opening

Bottom hung

TBT

Turn-Tilt

French casement

Parallel opening

Fixed Light

(300kg)

Horizontal pivot

(150kg)

Vertical pivot

(110kg)
