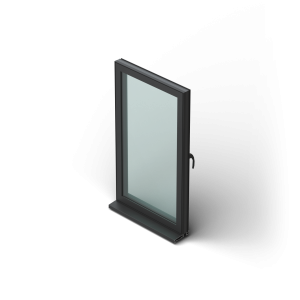

AA®720 SL Slimline Casement Window

The AA^®720 SL Slimline Casement Window is designed with narrow frame sightlines to achieve a modern aesthetic look, providing optimum weather and thermal performance.

Ultra slim sightlines maximise the glazing vision area while also providing a superior, modern look to any window
Outward opening side hung windows available with easy-clean egress hinges enabling simple and practical window maintenance
Suites with the AA^®720 series, AA^®100/AA^®110 Curtain Walling, 451PT Framing and Door Systems

Thermal

The AA®720 SL Slimline Casement Window is a thermally-efficient open-out window designed with narrow frame sightlines.

Uf-Value range 1.4 – 2.0 W/m²K
High-performance thermal break
Full compliance with Document L
Triple glazing option

Weathering

Drained and ventilated weathering – independently weather performance tested.

Trickle Ventilation option for Document F
Windload Class AE2400
Air Permeability Class 4
Watertightness Class 7A

Security

Fully tested to achieve PAS 24:2016 enhanced security certification.

Enhanced security locking
Box beads for enhanced security
Espagnolette locking helps prevent opportunist break-ins

Size and Weight Capability

Accommodates glazing up to 42mm.

Maximum size 1500mm
Fixed Light 300KG
Top Hung 50KG
Side Hung 26KG – 40KG
Infill Width 60mm

Two Styles

Available in two styles for a modern aesthetic look:

Cost effective and robust Standard option for the Education sector
Double Flush option – unique aesthetic for the Home Improvement sector

Outstanding Advantages

A superior, modern look to any window

Ultra-slim sightlines maximise the glazing vision area
Outward opening side hung window option
Easy-clean egress hinges – simple maintenance
BRE Green Guide ‘A’ Rated Frame

High performance cill options and corner posts for bays and conservatories suit virtually any configuration.

Winkhaus aluPilot

Winkhaus aluPilot Topstar hardware is now available with Kawneer AA®720 open-in windows, providing high efficiency installation key cost reductions. Upstream processes such as punching and cutting connecting rods to length aren’t required due to component housing in the sash frame fitting groove.

Providing an ideal suite of unique benefits, AA®720 and aluPilot Topstar allow for easy scaling of projects.

Turn, Turn-Tilt, Tilt-Before-Turn, and French Casement configurations are all supported
30% quicker fabrication
Component use reduction
Simplified tooling
No punching/cutting
Uses a 180KG weight concealed hinge
BM Trada Q Mark Compliant
PAS24
RC2 & RC3

Click here for further information on the AA^®720 Outward Opening Window Systems

Click here for further information on a range of suited handles available for our AA^®720 SL Slimline Casement Window

Discover more with our featured video content:
Document L (Q&A)

Project Assistance
For advice and support and to ensure you find the best solution for your individual project needs, please contact our Architectural Services Team.

Window Systems Brochure

19 MB

[Download]

Suited Handle Range Brochure

3 MB

[Download]

Education Brochure

7 MB

[Download]

For all technical documents, visit Kawneer Online

PERFORMANCE

U value

1,4 - 2,0 W/m²K

Windload

Class AE2400

Air Permeability

Class 4

Watertightness

Class 7A

Glazing weight

300KG

Security

PAS 24

Acoustics

C;Ctr = 40 (-6) dB

Certification

Passive House

KEY FEATURES

Maximum size

1500mm

Frame width

23mm - 52mm

System depth

72mm

Minimum sightline

23mm

Glazing thickness

22mm - 60mm

Glazing type

Double, Triple

Drainage and ventilation

Multi-point locking

Restrictor

100mm

Open options

Open out, open in

Flush casement

Finishes

130+

ARRANGEMENTS & WEIGHT LIMITATIONS

Top hung

(50kg)

Side hung

(26kg - 40kg)

2 stage opening

Bottom hung

TBT

Turn-Tilt

French casement

Parallel opening

Fixed Light

(300kg)

Horizontal pivot

Vertical pivot

Kawneer’s BIM Models are downloadable in the Revit format and also available on request as IFC files.

Our BIM Models provide users with 3D images of the products as well as the critical COBIE data to provide guidance through the whole design and construction process.
